Tapered leader pin for rubber mould
Description
Ask For Quote The leader pin for rubber mould, also called as rubber mould locating pin set, which is used for position on rubber mould. High precision and low tolerance provide better customer experience. What's more, the small tapered angle not only helps moulds locating precisely, but also interlocks moulds stably.
Small tapered angle makes the leader pin set have better performance of abrasion resistance and no (machine) jammed. Manufactured by high-quality raw material, the tapered leader pin for rubber mould is abrasion resistance and rust resistance. After vacuum treatment and hardness balanced, the final product will be checked by professional technician. If have any problems for the product specification, do not hesitate to contact us.
Product name | Tapered leader pin for rubber mould |
Item No. | / |
Manufacturer | MQ Mold |
Place of origin | Ningbo, China |
Material | SUJ2 |
Hardness | HRC 58-62 |
Mode | Factory & trade |

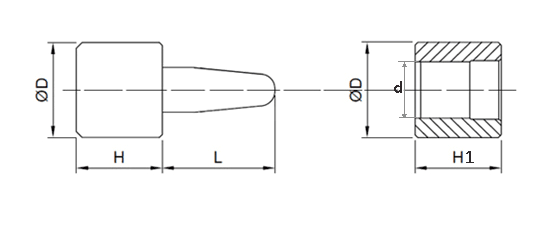

D*L | H | d | D*L | H1 | d |
12*10 | 8 | 10 | 20*15 | 12 | 18 |
12*15 | 15 | 20*18 | |||
12*20 | 20*20 | ||||
16*15 | 10 | 15 | 20*25 | ||
16*11 | 18 | 20*30 | |||
16*15 | 20*35 | ||||
16*18 | 20*40 | ||||
16*20 | 20*50 | ||||
16*25 | 20.5*11 | 12 | 18 | ||
16*30 | 20.5*15 | ||||
18*11 | 12 | 18 | 20.5*18 | ||
18*15 | 20.5*20 | ||||
18*18 | 20.5*25 | ||||
18*20 | 20.5*30 | ||||
18*25 | 21*11 | 12 | 18 | ||
18*30 | 21*15 | ||||
18*35 | 21*18 | ||||
18*40 | 21*20 | ||||
18*50 | 21*25 | ||||
20*11 | 12 | 18 | 21*30 |
