Adjusting Oil-free Slide Units
Description
Ask For QuoteProduct name | Adjusting Oil-free Slide Units |
Standard | Japanese Standard |
Manufacturer | MQ Mold |
Place of origin | Ningbo, China |
Material | See details as Component List |
Hardness | / |
Mode | Factory & trade |
Component List
| Item | Components/Part Name | Material | Piece |
| ① | Slide base | S55C | 2 |
| ② | Inclined pin holder | SCM440 | 1 |
| ③ | Slide plate | CAC304+Solid lubricant | 2 |
| ④ | Key | S45C | 1 |
| ⑤ | Adjust rod | S45C | 1 |
| ⑥ | Lock nut | S45C | 1 |
| ⑦ | Stopper | SS400 | 2 |
\

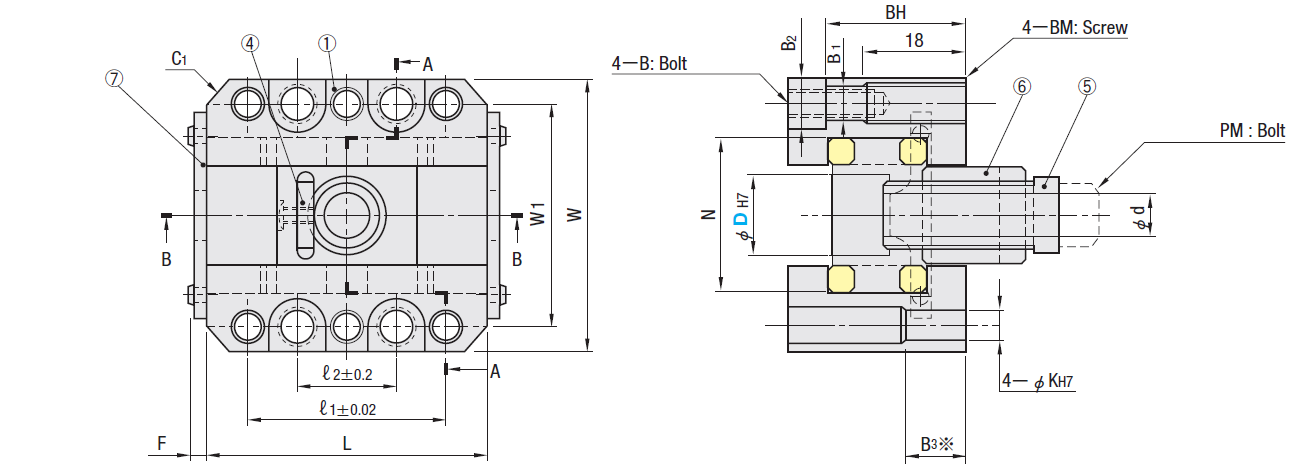

| ①Slide base | ②Angular pin holder | ③Slide plate | TH | G | F | Part Number | ||||||||||||
| W | L | H | C1 | C2 | D1 | d | h | h1 | h2 | h3 | N | S | a | Type | D | |||
| 56 | 55 | 35 | 5 | - | 11 | 5.5 | 6 | 33 | 10 | 10 | 30 | 20 | 35 | 58.5 | 17.5 | 4.65 | SCZA | 12 |
| 60 | 65 | 36 | 6 | - | 15 | 9 | 6 | 33 | 11 | 111 | 33 | 20 | 40 | 59 | 18 | 4.65 | 16 | |
| 68 | 70 | 43 | 6 | 5 | 18 | 11 | 6 | 36 | 13 | 13 | 38 | 24 | 40 | 65.5 | 21.5 | 4.65 | 20 | |
| 75 | 80 | 45 | 6 | 5 | 22 | 11 | 6 | 39 | 15 | 15 | 45 | 26 | 45 | 69.5 | 22.5 | 4.65 | 25 | |
| 81 | 95 | 54 | 6 | 5 | 27.5 | 11 | 6 | 41 | 17 | 17 | 51 | 30 | 55 | 76 | 27 | 4.65 | 30 | |
| Part Number | Bolt hole dimensions | ⑥Lock nut | ⑤Adjust rod | Mounting position of stopper | ||||||||||||||
| Type | D | l1 | l2 | W1 | B1 | B2 | B3 | BM | BH | K | S1 | e1 | S2 | e2 | A | B | ||
| SCZA | 12 | 42 | 21 | 45 | 6.6 | 11 | 15 | M8 | 28.5 | 6 | 17 | 19.6 | 12 | 13.9 | 0°~10° | - | ||
| 16 | 46 | 25 | 48 | 6.6 | 11 | M8 | 29.5 | 6 | 21 | 24.2 | 16 | 18.5 | 0°~10° | - | ||||
| 20 | 50 | 25 | 55 | 8.6 | 13.5 | 20 | M10 | 34.5 | 8 | 24 | 27.7 | 19 | 21.9 | 4°~10° | 0°~3° | |||
| 25 | 60 | 35 | 62 | 8.6 | 13.5 | M10 | 36.5 | 8 | 24 | 27.7 | 19 | 21.9 | 4°~10° | 0°~3° | ||||
| 30 | 75 | 50 | 68 | 8.6 | 13.5 | M10 | 45.5 | 8 | 24 | 27.7 | 19 | 21.9 | 0°~10° | - | ||||
