Adjusting Slide Core Unit
Description
Ask For QuoteGuide parts of SCZA series.
Product name | Adjusting Slide Core Unit |
Standard | Japanese Standard |
Manufacturer | MQ Mold |
Place of origin | Ningbo, China |
Material | See details as Component List |
Hardness | / |
Mode | Factory & trade |
| Item | Components/Parts Name | Material | Piece |
| ① | Inclined pin holder | SCM440 | 1 |
| ② | Slide plate | CAC304+Solid lubricant | 2 |
| ③ | Key | S45C | 1 |
| ④ | Adjust rod | S45C | 1 |
| ⑤ | Lock nut | S45C | 1 |
| Part Number | ①Inclined pin holder | ②Slide plate | ⑤Lock nut | ④Adjust rod | ||||||||||||

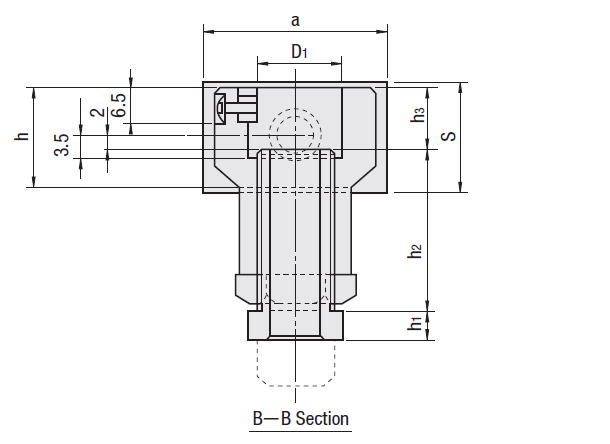

| Type | D | D1 | d | h | h1 | h2 | h3 | N | N1 | S | a | T | S1 | e1 | S2 | e2 |
| SCZAP | 12 | 11 | 5.5 | 16 | 6 | 33 | 10 | 30 | 17 | 20 | 35 | 6.5 | 17 | 19.6 | 12 | 13.9 |
| 16 | 15 | 9 | 18 | 6 | 33 | 11 | 33 | 20 | 20 | 40 | 6.5 | 21 | 24.2 | 16 | 18.5 | |
| 20 | 18 | 11 | 22 | 6 | 36 | 13 | 38 | 25 | 24 | 40 | 6.5 | 24 | 27.7 | 19 | 21.9 | |
| 25 | 22 | 11 | 26 | 6 | 39 | 15 | 45 | 31 | 26 | 45 | 7 | 24 | 27.7 | 19 | 21.9 | |
| 30 | 27.5 | 11 | 30 | 6 | 41 | 17 | 51 | 36 | 30 | 55 | 7.5 | 24 | 27.7 | 19 | 21.9 | |
