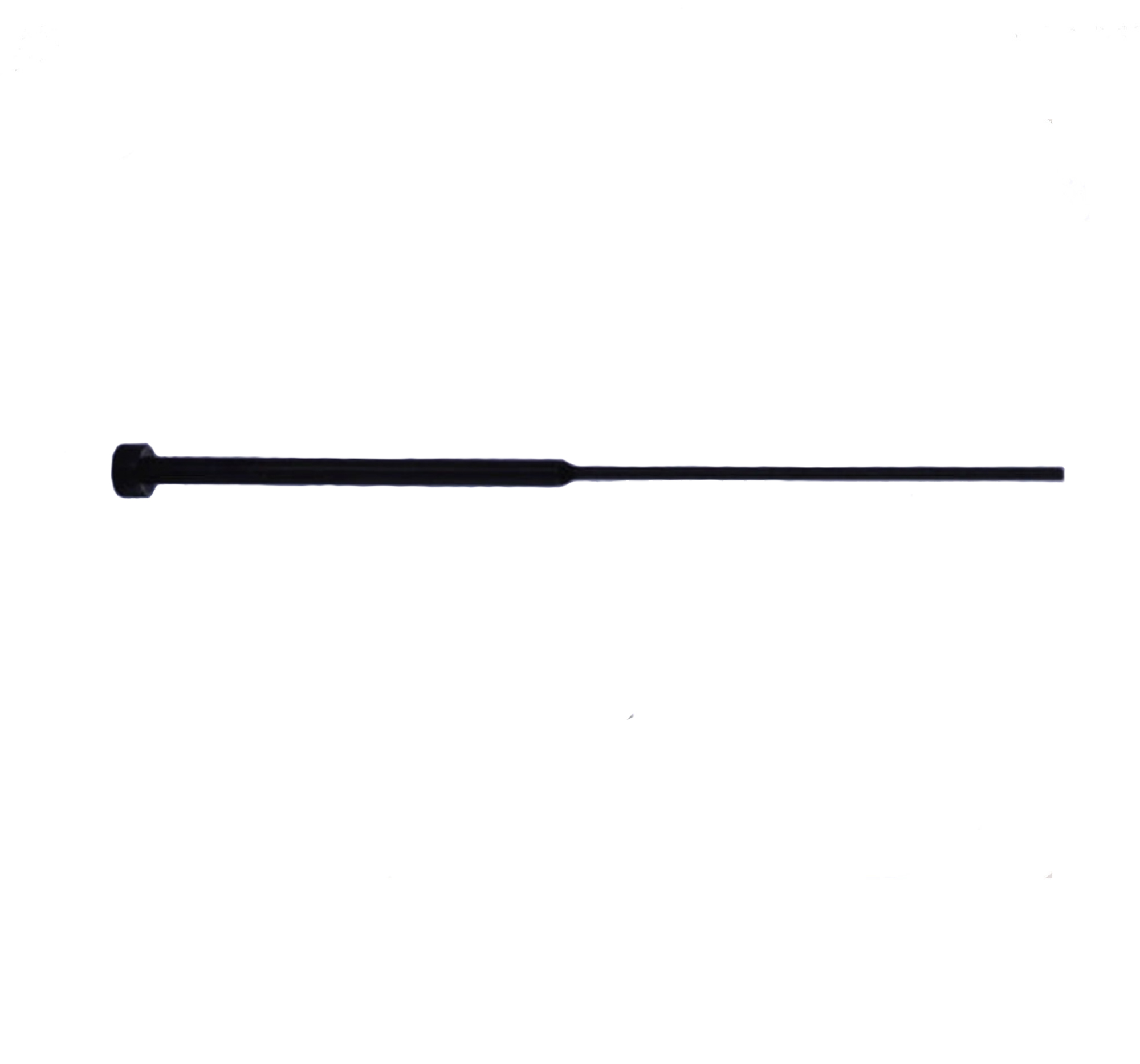

Black shoulder ejector pin DIN1530C
Description
Ask For QuoteCylindrical head hot forged with hardened shaft, tempered and fine ground finished to g6.
Temper resistance at least 600°C
Nitrided and oxidized(black finish)
Product name | Black shoulder ejector pin |
Standard | DIN 1530C (similar to ISO8694) |
Manufacturer | MQ Mold |
Place of origin | Ningbo, China |
Material | Tool steel 1.2344... |
Hardness | Shaft: At least 950 HV 0.3 on surface. Core strength approx. 1400N/mm² Inner H RC45 ± 5 Head: HRC45 ± 5 |
Mode | Factory & trade |
|

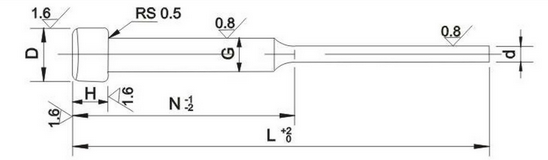

d1 g6 |
G -0.01 -0.03 |
D 0 -0.2 |
H 0 -0.05 | L/N | |||||
| 80/35 | 100/50 | 125/50 | 165/75 | 200/75 | 250/100 | ||||
| 0.8 | 2.0 | 4 | 2 | ● | ● | ● | |||
| 0.9 | ● | ● | ● | ||||||
| 1.0 | ● | ● | ● | ● | |||||
| 1.1 | ● | ● | ● | ● | |||||
| 1.2 | ● | ● | ● | ● | |||||
| 1.3 | ● | ● | ● | ● | |||||
| 1.4 | ● | ● | ● | ● | |||||
| 1.5 | 3.0 | 6 | 3 | ● | ● | ● | ● | ● | |
| 1.6 | ● | ● | ● | ● | ● | ||||
| 1.7 | ● | ● | ● | ● | ● | ||||
| 1.8 | ● | ● | ● | ● | ● | ||||
| 1.9 | ● | ● | ● | ● | ● | ||||
| 2.0 | ● | ● | ● | ● | ● | ||||
| 2.1 | ● | ● | ● | ● | ● | ||||
| 2.2 | ● | ● | ● | ● | ● | ||||
| 2.3 | ● | ● | ● | ● | ● | ||||
| 2.4 | ● | ● | ● | ● | ● | ||||
| 2.5 | ● | ● | ● | ● | ● | ||||
| 2.6 | ● | ● | ● | ● | ● | ||||
| 2.7 | ● | ● | ● | ● | ● | ||||
| 2.8 | ● | ● | ● | ● | ● | ||||
| 2.9 | ● | ● | ● | ● | ● | ||||
