Punch with key grooves
Description
Ask For Quote
Product name | Punch with key grooves |
Standard | JIS |
Manufacturer | MQ Mold |
Place of origin | Ningbo, China |
Material | SKD11, P-HSS |
Hardness | 64~67HRC |
Mode | Factory & trade |
Shank diameter. Tolerance | Material | Hardness | Type | Tip Shape | B | |||
Dm5 | SKD11 | 60~63HRC | SK | A |
| |||
SKH51 | 61~64HRC | SHK | ||||||
P-HSS | 64~67HRC | PK | ||||||
D +0.005 | SKD11 | 60~63HRC | A-SK | |||||
SKH51 | 61~64HRC | A-SHK | ||||||
P-HSS | 64~67HRC | A-PK |
Type | Tip shape | B | D | L | 0.01mm increments | 0.1mm increments | B | U | |||

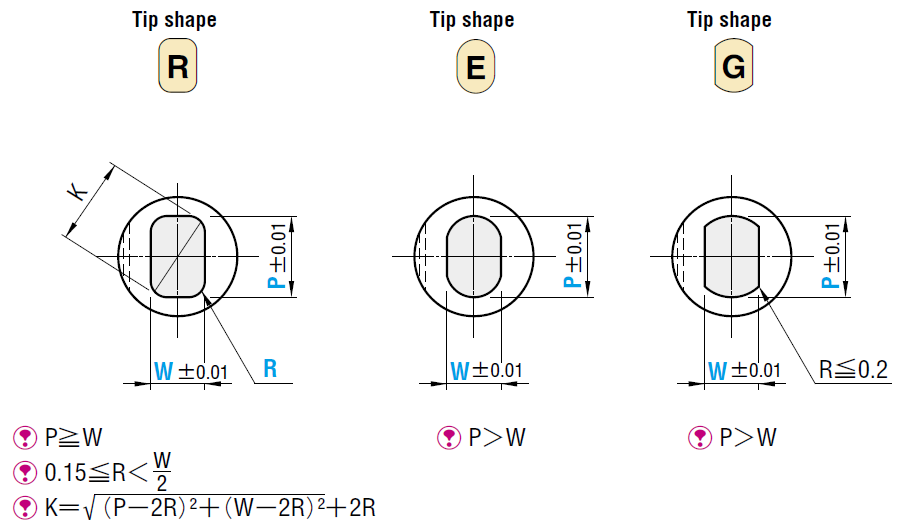

A | D R E G | R | T | ||||||||
10mm increments | min. P max. | P·Kmax | P·Wmin | R | |||||||
| A | S | 3 | 40~80 | 1.00~2.99 | - | - |  | T＞5.0 | 8 | 0.5 |
4 | 40~80 | 1.00~3.99 | 3.97 | 1.00 | |||||||
5 | 40~80 | 2.00~4.99 | 4.97 | 1.20 | |||||||
6 | 40~80 | 2.00~5.99 | 5.97 | 1.50 | 1.0 | ||||||
8 | 40~100 | 3.00~7.99 | 7.97 | 2.00 | 13 | 1.5 | |||||
10 | 40~100 | 3.00~9.99 | 9.97 | 2.50 | |||||||
13 | 40~100 | 6.00~12.99 | 12.97 | 3.00 | |||||||
16 | 40~100 | 10.00~15.99 | 15.97 | 4.00 | 19 | ||||||
L | 3 | 50~80 | 1.00~2.99 | - | - | 13 | 0.5 | ||||
4 | 50~80 | 1.00~3.99 | 3.97 | 2.00 | |||||||
5 | 50~80 | 2.00~4.99 | 4.97 | 2.00 | |||||||
6 | 50~80 | 2.00~5.99 | 5.97 | 2.00 | 1.0 | ||||||
8 | 50~100 | 3.00~7.99 | 7.97 | 2.50 | 19 | 1.5 | |||||
10 | 50~100 | 3.00~9.99 | 9.97 | 2.50 | |||||||
13 | 50~100 | 6.00~12.99 | 12.97 | 3.00 | |||||||
16 | 60~100 | 10.00~15.99 | 15.97 | 4.00 | 25 | ||||||
X | 3 | 50~80 | 1.20~2.99 | - | - | 19 | 0.5 | ||||
4 | 50~80 | 1.20~3.99 | 3.97 | 2.00 | |||||||
5 | 60~80 | 2.00~4.99 | 4.97 | 3.50 | 25 | ||||||
6 | 60~80 | 2.00~5.99 | 5.97 | 3.50 | 1.0 | ||||||
8 | 60~100 | 3.00~7.99 | 7.97 | 5.00 | 30 | 1.5 | |||||
10 | 60~100 | 3.00~9.99 | 9.97 | 5.00 | |||||||
13 | 60~100 | 6.00~12.99 | 12.97 | 5.00 | |||||||
16 | 60~100 | 10.00~15.99 | - | - | 40 | ||||||
