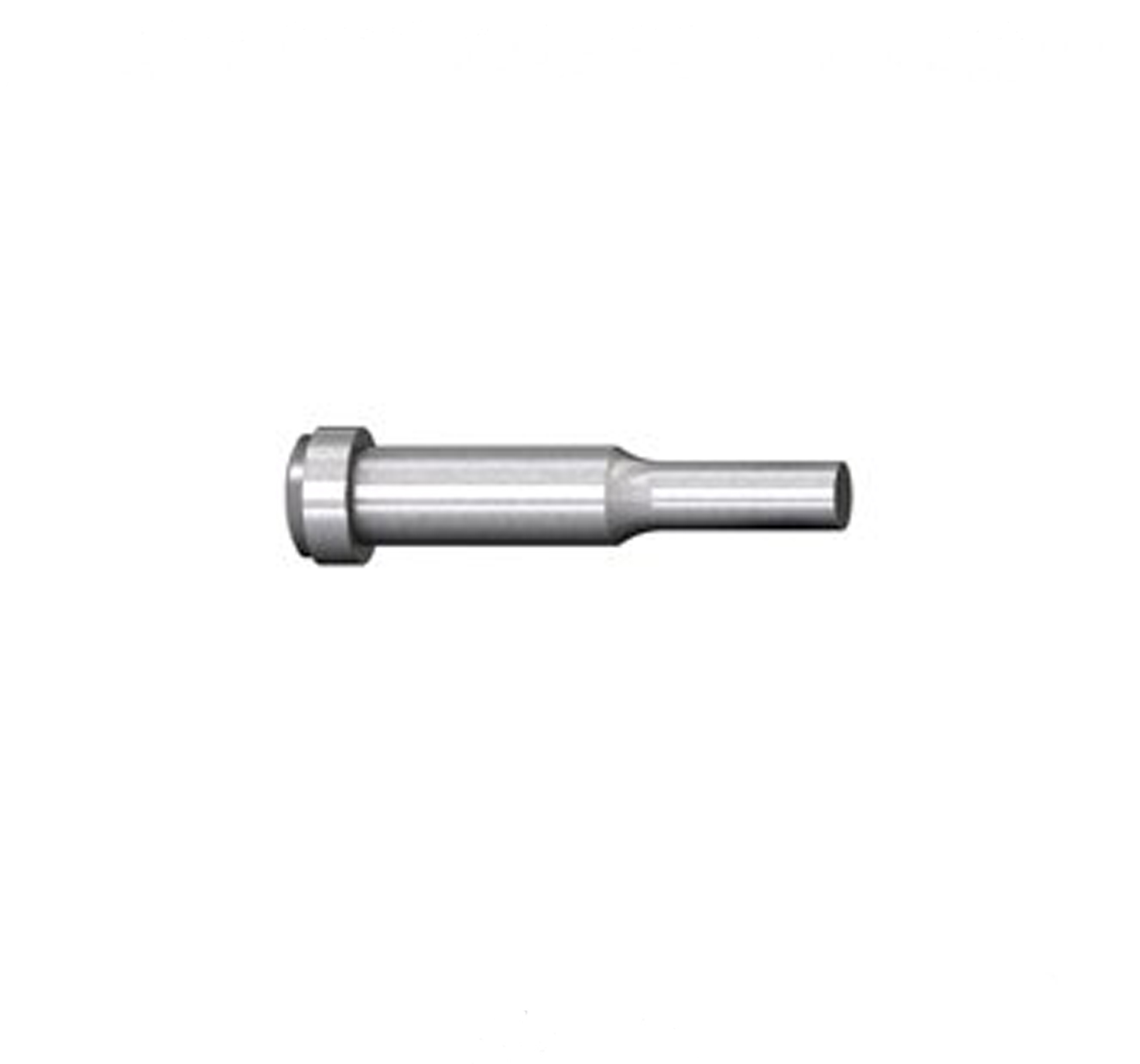

Tapered head punches
Description
Ask For Quote
Product name | Tapered head punches |
Standard | JIS |
Manufacturer | MQ Mold |
Place of origin | Ningbo, China |
Material | SKH51, P-HSS |
Hardness | 64~67HRC |
Mode | Factory & trade |
1. The tip end of a TiCN coating punch is ground before the coating is applied.
2. The tip edge of an HW coating punch is very slightly rounded.
Processing | Material | Hardness | Type | B | |||
Normal | SKH51 | 61~64HRC | TSSHAS |
| |||
TiCN coating | |||||||
HW coating | |||||||
P-HSS | 64~67HRC | TSPHAS | |||||
TiCN coating | |||||||
HW coating |

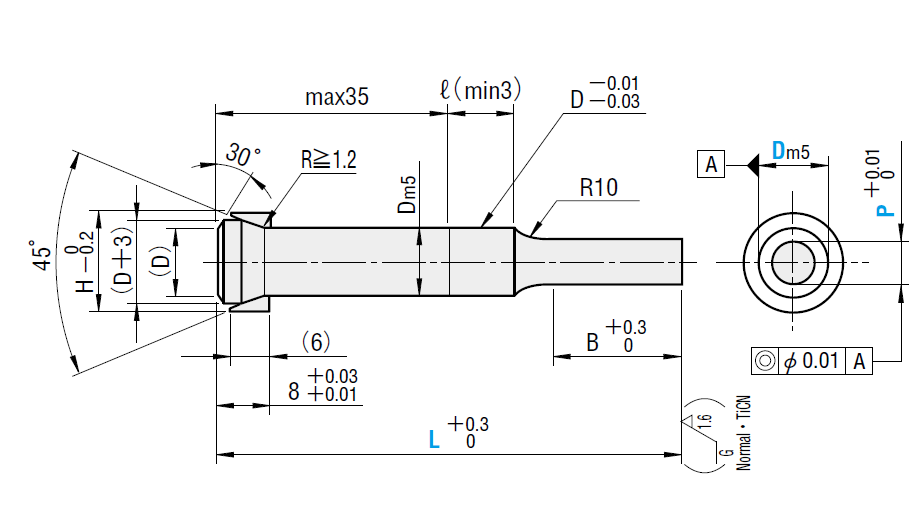

Type | D | B | L | 0.01mm increments | B | H |
10mm increments | min. P max. | |||||
TSSHAS | 8 | S | 60~100 | 3.00~7.99 | 13 | 13 |
10 | 60~100 | 3.00~9.99 | 15 | |||
13 | 60~100 | 6.00~12.99 | 18 | |||
16 | 60~100 | 10.00~15.99 | 19 | 21 | ||
20 | 60~100 | 13.00~19.99 | 25 | |||
25 | 60~100 | 18.00~24.99 | 30 | |||
TSSHAL | 8 | L | 60~100 | 3.00~7.99 | 19 | 13 |
10 | 60~100 | 3.00~9.99 | 15 | |||
13 | 60~100 | 6.00~12.99 | 18 | |||
16 | 60~100 | 10.00~15.99 | 25 | 21 | ||
20 | 60~100 | 13.00~19.99 | 25 | |||
25 | 60~100 | 18.00~24.99 | 30 |
