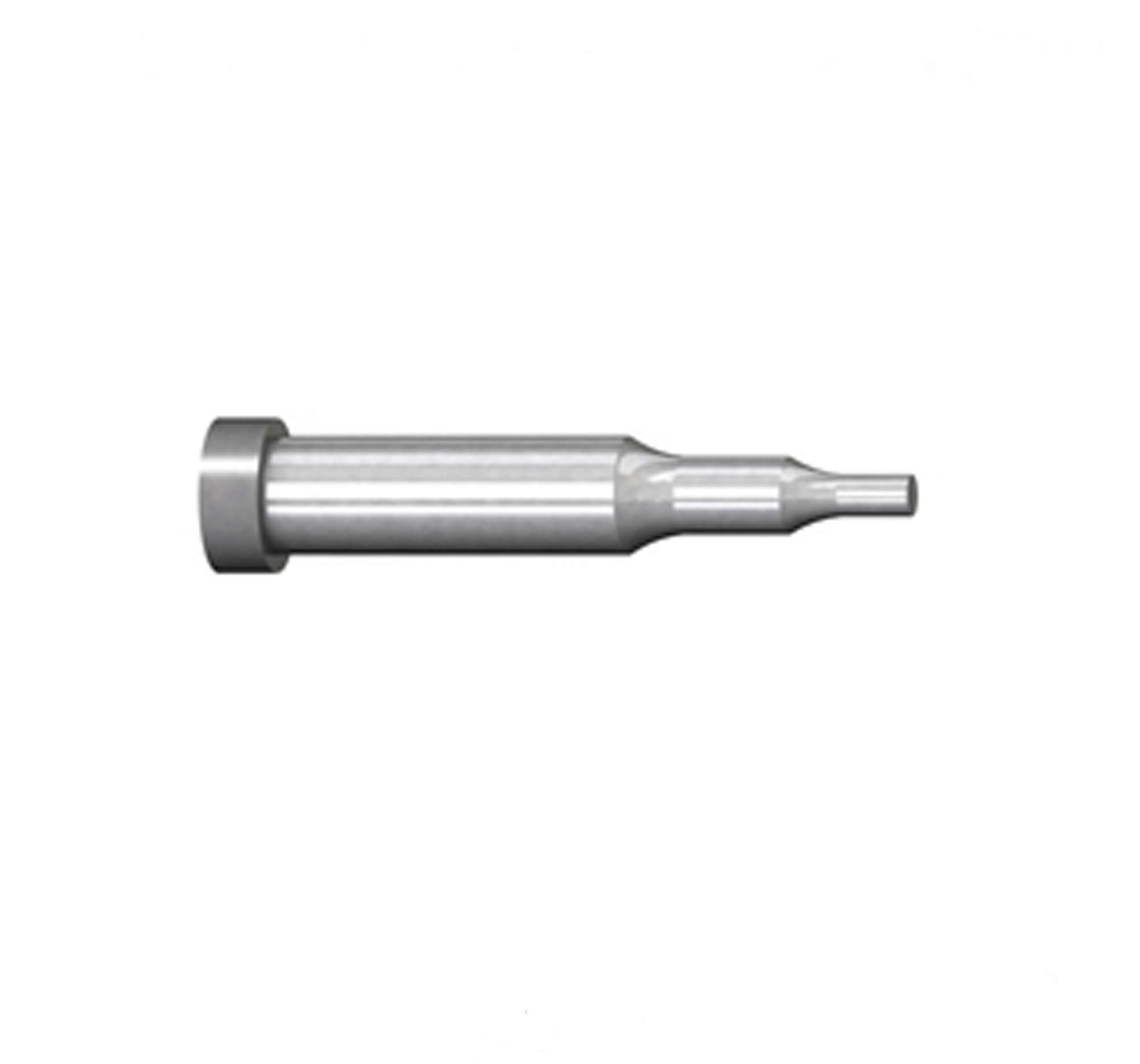

Double stepped shoulder punch
Description
Ask For QuoteUsed for stamping die, Japanese standard.
Customization service is accepted. Please provide drawing.
Product name | Double stepped shoulder punch |
Standard | JIS |
Manufacturer | MQ Mold |
Place of origin | Ningbo, China |
Material | SKD11, SKH51, P-HSS... |
Hardness | HRC 64-67 |
Mode | Factory & trade |
1. The tip end of a punch is ground before the coating is applied.
2. The tip edge of an HW coating punch is very slightly rounded.
3. P·W min is 1.00 for coating punches.
Shank diameter. Tolerance | Material | Hardness | Type | Tip shape | ||
Normal | TiCN coating | HW coating | ||||
Dm5 | SKD11 | 60~63HRC | SPTW | - | - | A |
SKH51 | 61~64HRC | SHTW | H-SHTW | HW-SHTW | ||
P-HSS | 64~67HRC | PHTW | H-PHTW | HW-PHTW | ||
D +0.005 | SKD11 | 60~63HRC | A-SPTW | - | - | |
SKH51 | 61~64HRC | A-SHTW | AH-SHTW | AHW-SHTW | ||
P-HSS | 64~67HRC | A-PHTW | AH-PHTW | AHW-PHTW | ||

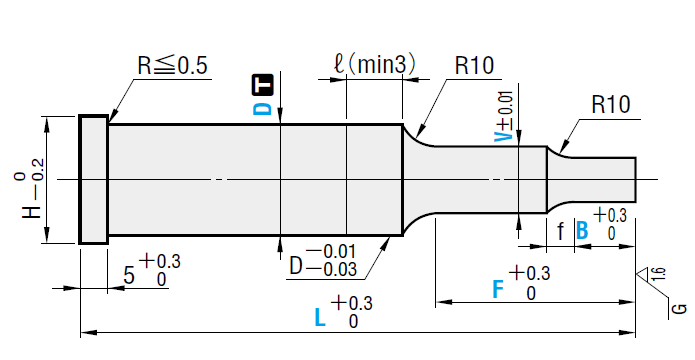

Type | Tip shape | D | L | 0.01mm increments |
| 0.01mm increment | 0.01mm increment | F | H | |||

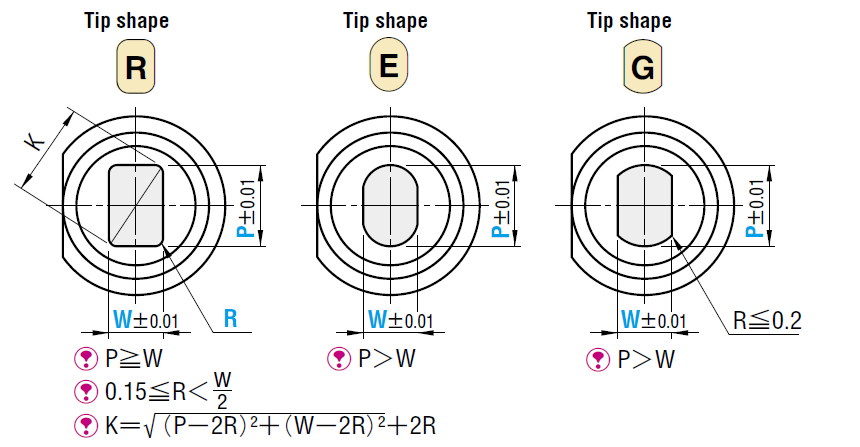

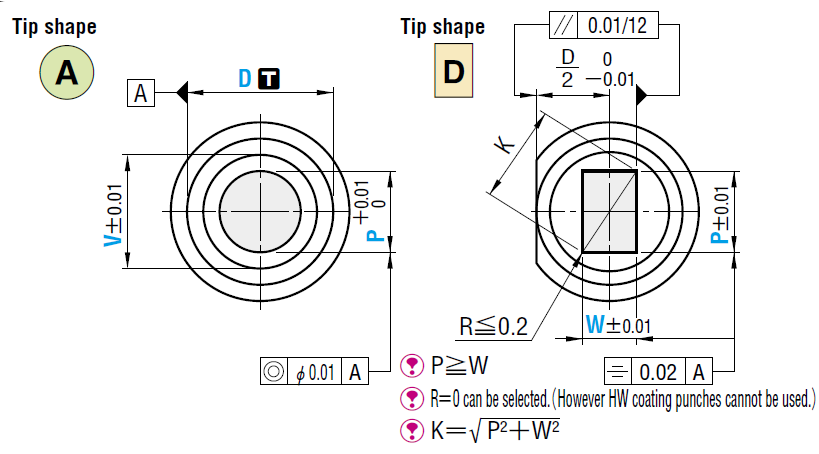

A | Diagonal | D R E G | R | D R E G | V | |||||||
10mm increments | P | B | Kmax. | P·W | R | B | ||||||
(Dm5) | A | 3 | 40~80 | （0.50~0.999） | 2.0~10.0 | 2.96 | 0.70（1.00）~1.49 | | 2.0~8.0 | A: | B+f+2﹤F≦Fmax. | 5 |
1.00~1.999 | 2.0~20.0 | 1.50~1.99 | 2.0~13.0 | |||||||||
2.00~2.98 | 2.0~35.0 | 2.00~2.96 | 2.0~19.0 | |||||||||
4 | 40~80 | （0.50~0.999） | 2.0~10.0 | 3.96 | 0.80（1.00）~1.49 | 2.0~8.0 | 7 | |||||
1.00~1.999 | 2.0~20.0 | 1.50~1.99 | 2.0~13.0 | |||||||||
2.00~3.98 | 2.0~35.0 | 2.00~3.49 | 2.0~19.0 | |||||||||
2.00~3.98 | 2.0~35.0 | 3.50~3.96 | 2.0~25.0 | |||||||||
5 | 40~80 | 1.00~1.999 | 2.0~20.0 | 4.96 | 0.8（1.00）~1.49 | 2.0~8.0 | 8 | |||||
2.00~3.999 | 2.0~35.0 | 1.50~1.99 | 2.0~13.0 | |||||||||
4.00~4.98 | 2.0~45.0 | 2.00~3.49 | 2.0~19.0 | |||||||||
4.00~4.98 | 2.0~45.0 | 3.50~4.96 | 2.0~25.0 | |||||||||
6 | 40~80 | 1.00~1.999 | 2.0~20.0 | 5.96 | 0.80（1.00）~1.49 | 2.0~8.0 | 9 | |||||
2.00~3.999 | 2.0~35.0 | 1.50~1.99 | 2.0~13.0 | |||||||||
4.00~5.98 | 2.0~45.0 | 2.00~3.49 | 2.0~19.0 | |||||||||
4.00~5.98 | 2.0~45.0 | 3.50~4.99 | 2.0~25.0 | |||||||||
4.00~5.98 | 2.0~45.0 | 5.00~5.96 | 2.0~30.0 | |||||||||
8 | 40~100 | 1.00~1.999 | 2.0~20.0 | 7.96 | 1.00~1.49 | 2.0~8.0 | 11 | |||||
2.00~3.999 | 2.0~35.0 | 1.50~1.99 | 2.0~13.0 | |||||||||
4.00~5.999 | 2.0~45.0 | 2.00~3.49 | 2.0~19.0 | |||||||||
6.00~7.98 | 2.0~60.0 | 3.50~4.99 | 2.0~25.0 | |||||||||
6.00~7.98 | 2.0~60.0 | 5.00~7.96 | 2.0~30.0 | |||||||||
10 | 40~100 | 1.50~1.999 | 2.0~20.0 | 9.96 | 1.25~1.49 | 2.0~8.0 | 13 | |||||
2.00~3.999 | 2.0~35.0 | 1.50~1.99 | 2.0~13.0 | |||||||||
4.00~5.999 | 2.0~45.0 | 2.00~3.49 | 2.0~19.0 | |||||||||
6.00~9.98 | 2.0~60.0 | 3.50~4.99 | 2.0~25.0 | |||||||||
6.00~9.98 | 2.0~60.0 | 5.00~9.96 | 2.0~30.0 | |||||||||
13 | 40~100 | 3.00~3.999 | 2.0~35.0 | 12.96 | 1.50~1.99 | 2.0~13.0 | 16 | |||||
4.00~5.999 | 2.0~45.0 | 2.00~3.49 | 2.0~19.0 | |||||||||
6.00~12.98 | 2.0~60.0 | 3.50~4.99 | 2.0~25.0 | |||||||||
6.00~12.98 | 2.0~60.0 | 5.00~12.96 | 2.0~30.0 | |||||||||
16 | 40~100 | 5.00~5.999 | 2.0~45.0 | 15.96 | 2.00~3.49 | 2.0~19.0 | 19 | |||||
6.00~15.98 | 2.0~60.0 | 3.50~4.99 | 2.0~25.0 | |||||||||
6.00~15.98 | 2.0~60.0 | 5.00~15.96 | 2.0~30.0 | |||||||||
20 | 40~100 | 6.50~19.98 | 2.0~60.0 | 19.96 | 2.50~3.49 | 2.0~19.0 | 23 | |||||
6.50~19.98 | 2.0~60.0 | 3.50~4.99 | 2.0~25.0 | |||||||||
6.50~19.98 | 2.0~60.0 | 5.00~19.96 | 2.0~30.0 | |||||||||
25 | 40~100 | 9.00~24.98 | 2.0~60.0 | 24.96 | 3.00~3.49 | 2.0~19.0 | 28 | |||||
9.00~24.98 | 2.0~60.0 | 3.50~4.99 | 2.0~25.0 | |||||||||
9.00~24.98 | 2.0~60.0 | 5.00~24.96 | 2.0~30.0 | |||||||||
