Compact short stroke hydraulic cylinder
Description
Ask For Quote Hydraulic cylinder is an essential working part in various fields and will be never out of style or replaced by other components. Different types of hydraulic cylinders are applied in different fields.
In construction machinery, they are equipped with hydraulic lift cylinders and steering cylinders for cranes, forklift, tractor, loaders, excavator... In industry equipment, hydraulic press cylinders, tie rod cylinders and compact cylinders would be chosen. Heavy duty cylinders and stainless steel hydraulic cylinder are popular with marine and offshore machinery.
Compact short stroke hydraulic cylinder could be installed directly, no need of any accessories. In possess of small volume, it is more suitable to fit in molds, machining fixture or install machinery where space is limited.
Hydraulic cylinder is made of several components: primary seal, secondary seal, piston rod, piston rod end, rod gland, ports, bi-directional piston seal, non-metallic wear band and cylinder body.
Product name | Compact short stroke hydraulic cylinder |
Item No. | / |
Manufacturer | MQ Mold |
Place of origin | Ningbo, China |
Material | / |
Hardness | / |
Mode | Factory & trade |

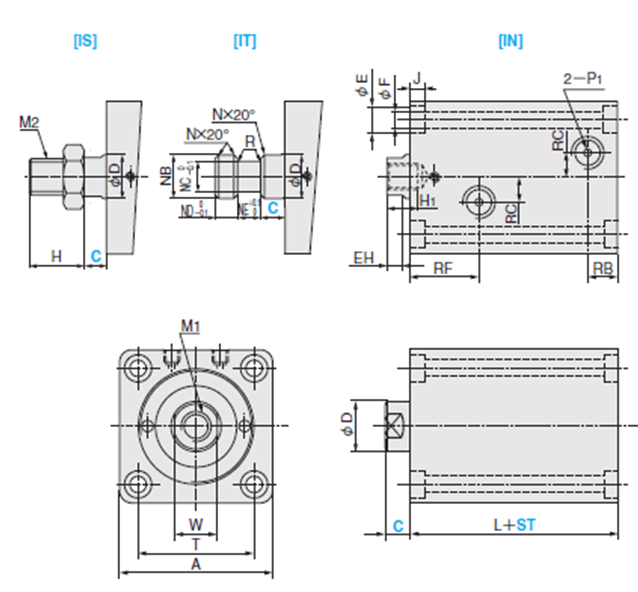

Cylinder dia. | D | A | L | E | F | J | W | T | P1(PT) | RF | RB | RC | M1 | M2 | EH | H | H1 | NB | NC | ND | NE | R | N | |
ST<150 | ST>150 | |||||||||||||||||||||||
20 | 12 | 42 | 60 | - | 10 | 6 | 6 | 10 | 30 | 1/8 | 32.5 | 10.5 | 5 | M8 | M10 x 1.25 | 6 | 18 | 15 | - | - | - | - | - | - |
25 | 14 | 48 | 62 | - | 10 | 6 | 6 | 12 | 36 | 1/8 | 32.5 | 10.5 | 5 | M10 | M12 x 1.25 | 6 | 20 | 15 | 14 | 8 | 8 | 8 | 1 | 2 |
32 | 20 | 62 | 68 | - | 11 | 7 | 7 | 17 | 47 | 1/4 | 34 | 12 | 10 | M12 | M16 x 1.5 | 7 | 25 | 15 | 20 | 10 | 8 | 8 | 1 | 2 |
40 | 25 | 70 | 70 | 78 | 14 | 9 | 9 | 22 | 52 | 1/4 | 34 | 12 | 10 | M16 | M20 x 1.5 | 7 | 30 | 20 | 25 | 13 | 10 | 10 | 1 | 3 |
50 | 30 | 80 | 70 | 78 | 18 | 11 | 11 | 27 | 58 | 1/4 | 31.5 | 13.5 | 10 | M20 | M26 x 1.5 | 8 | 35 | 25 | 30 | 16 | 13 | 13 | 1 | 3 |
63 | 35 | 94 | 73 | 81 | 20 | 14 | 14 | 32 | 69 | 1/4 | 31.5 | 14.5 | 10 | M24 | M30 x 1.5 | 10 | 40 | 35 | 35 | 22 | 16 | 16 | 2 | 3 |
80 | 40 | 114 | 86 | 97 | 23 | 16 | 16 | 36 | 86 | 3/8 | 35 | 19 | 15 | M27 | M36 x 1.5 | 14 | 45 | 35 | 40 | 30 | 20 | 20 | 2 | 4 |
100 | 50 | 134 | 95 | 107 | 26 | 18 | 18 | 45 | 102 | 3/8 | 39 | 24 | 15 | M36 | M40 x 3.0 | 14 | 50 | 40 | 50 | 35 | 30 | 30 | 2 | 4 |
125 | 60 | 160 | 103 | 115 | 32 | 22 | 22 | 56 | 120 | 3/8 | 43 | 26 | 20 | M39 | M50 x 2.0 | 14 | 55 | 40 | 60 | 40 | 30 | 30 | 2 | 4 |
Pressure | Type | DD | ST( 1mm) | C(1mm) | Shape of piston rod | Heat resistance |
M | ||||||
140kgf/cm2 | Compact hydraulic cylinder | 20 | 5~120 | 8~120 | IN IS | N(-5℃~80℃) |
25 | 5~130 | |||||
32 | 5~150 | 10~150 | IN | |||
40 | 5~200 | |||||
50 | 5~240 | 11~150 | ||||
63 | 5~280 | 13~150 | ||||
80 | 5~280 | 17~150 | ||||
100 | 5~280 | |||||
125 | 5~280 |
