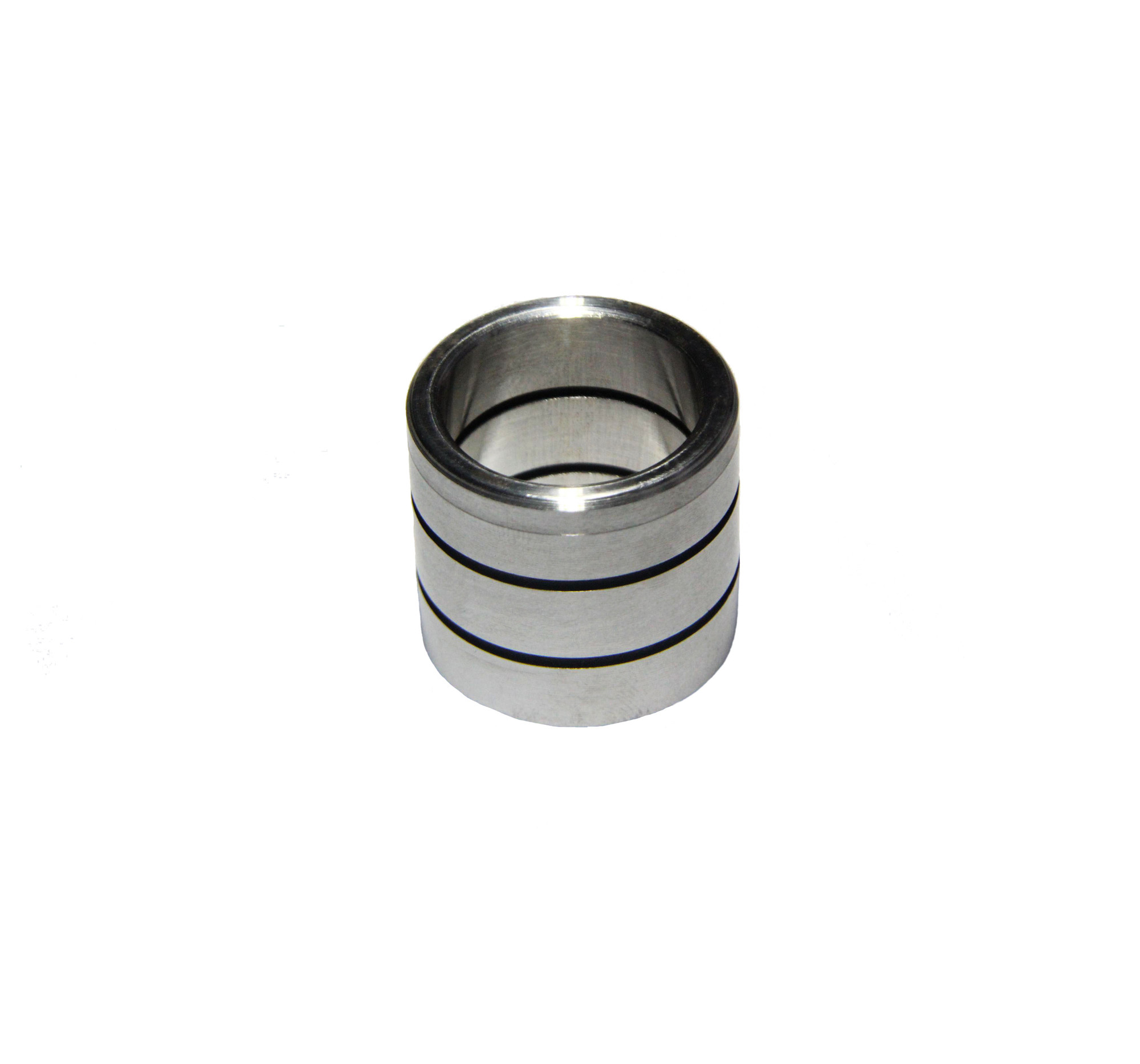

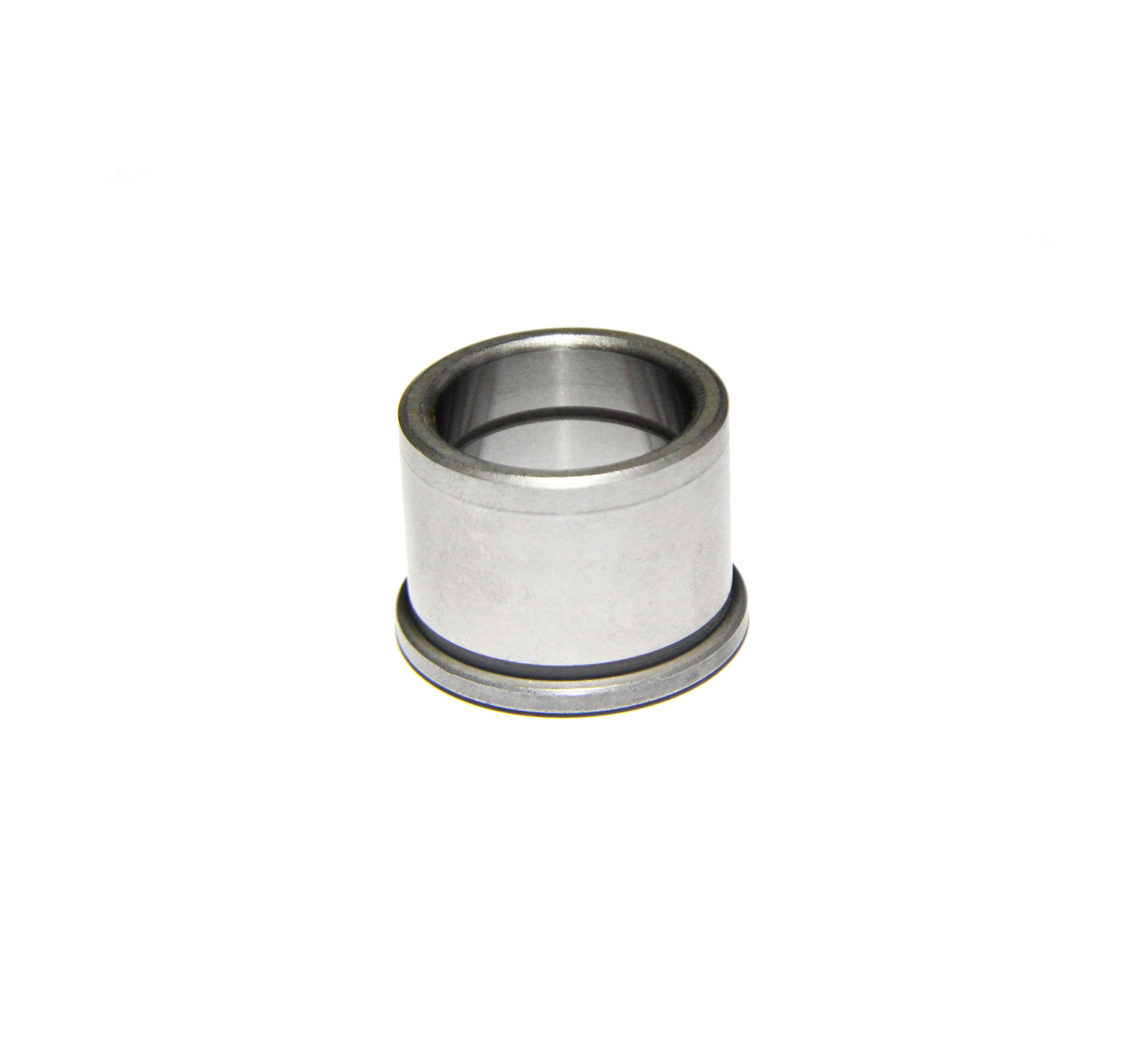

Precision guide bush for mold parts

Description

Ask For Quote

     Guide bush is a component for guide device, and matched with corresponding guide pin. The fit clearance between guide bush and guide pin is very small, within the range of 0.05mm. It's generally used on moulds or some machine, to keep the accuracy of motion.
     The guide bushing is essentially a circular flange, usually between 10mm and 40mm outside diameter, which fixes to the router base and acts rather like a small ring fence. The cutter plunges through the middle of the bush and the outside edge of the ring runs against the jig or template, to position the cut.
     After guide bush and guide pin assembled, the device has below functions:
a) accurately locate core and cavity side of plastic injection mould, and make them match perfectly and move smoothly;
b) support weight of the mould;
c) protect core or cavity inserts

Product name

Precision guide bush for mold   parts

Item No.

SGBA, SGBH

Manufacturer

MQ Mold

Place of origin

Ningbo, China

Material

SUJ 2, 20Cr

Hardness

HRC 58-62

Mode

Factory & trade

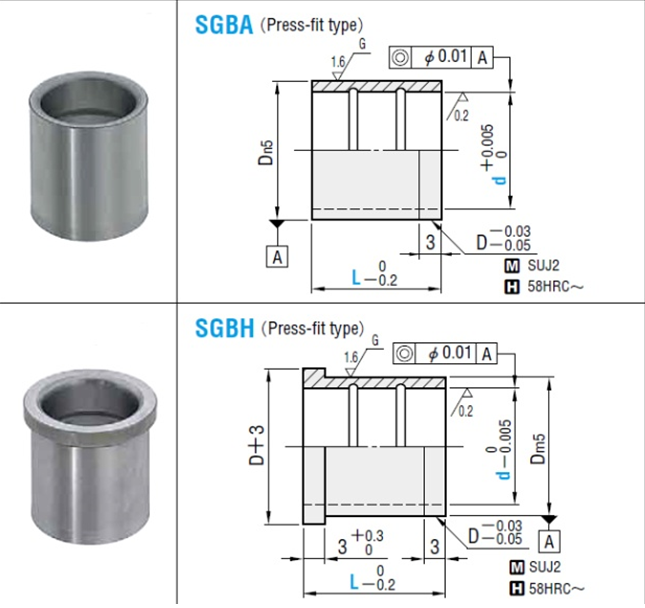

Precision guide bush for mold parts(图1)


Dn5TypedL
12+0.020
+0.012
SGBA810 13 16 20
141010 13 16 20 25
1813     13 16 20 25
22+0.024
+0.015
16          16 20 25 30
2520               20 25 30
32+0.028
+0.017
25                    25 30 35


Dn5TypedL
12+0.015
+0.007
SGBH810 13 16 20
141010 13 16 20 22 25
1813     13 16 20 22 25 30 35
22+0.017
+0.008
16     13 16 20 22 25 30 35
2520          16 20 25 22 30 35
32+0.020
+0.009
25               20 22 25 30 35
